KONE TRANSITMASTER™ 165 HORIZONTAL AUTOWALK

The ideal solutions for managing people flow in the most demanding environments

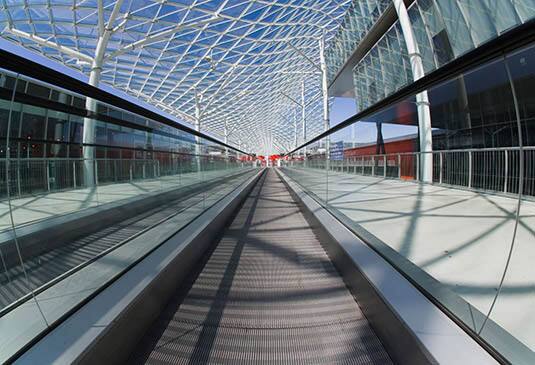

img_escalators-transitmaster165-carousel-1

Product information

Description

The KONE TransitMaster™ 165 is a heavy-duty autowalk primarily targeted towards the infrastructure segment with demanding traffic conditions, such as airports, railways as well as stadiums and other transit centers.

Specifications

Operational environment: indoor, semi-outdoor
Speed: 0.75, 0.65, 0.5 m/s; 0.4 m/s with inverter
Inclination: 0-6º
Pallet width: 1000, 1200, 1400 mm
Vertical rise: up to 100 m

Safety

Safety is the starting point for every KONE solution. TransitMaster™ 165 conforms to all local and international safety codes.
We provide standard safety features including comb plate impact device switches and emergency stop buttons for passengers.

Tools and downloads

Escalator Planner

Escalator Planner helps you select the right product as well as create detailed specifications, BIM equipment models and CAD drawings for preliminary planning.

Escalator & Autowalk Planning guide

Our easy-to-understand guide gives you all the information you need when planning an escalator or autowalk solution, including guidance on building regulations and safety codes.

KONE TransitMaster™ 165 horizontal autowalk

This guide details the options and planning dimensions for the KONE TransitMaster 165 horizontal autowalk, which is designed for transport hubs such as airports and railroad stations.

KONE Escalator and Autowalk Solutions

Our flexible range of escalators and autowalks can be tailored to a wide range of applications, and are all based on the same reliable technology and modern visual design.

solutions for transit centers

Our range of solutions designed to cope with the tough demands of busy transit center environments includes elevators, escalators, autowalks, and doors.

KONE solutions for airports

Our solutions for the unique demands of airport environments help manage the flow of people and goods into and through the airport safely, reliably, and efficiently.

Options and highlights

ECO-EFFICIENCY

Eco-efficient operation can save energy by slowing down or stopping the autowalk when it is not in use or when traffic is low
Long lasting LED lighting is up to 80% more efficient than fluorescent lighting and lasts up to 10 times longer
Reduced autowalk speed of 0.4m/s saves energy depending on passenger traffic
The lubrication-free step chain saves oil, reduces chain wear, and decreases fire risk

SAFETY ENHANCEMENT

In addition to the standard safety features, we offer optional safety features including:

New traffic signalization solutions and colored step demarcations for extra visual guidance
Halogen-free, fire-resistant wiring
Seismic movement options
Extensive monitoring options such as KONE Remote Monitoring™ and KONE E-link™ to integrate with your building management systems

Find out more about safety at KONE

DESIGN

High quality visual design for the best possible user experience:

Innovative and attractive lighting solutions that also improve passenger guidance and safety
Wide range of design options to create stunning visual effects and perfectly match your building’s architecture
High quality component finishes and a harmonized look and feel throughout the KONE product portfolio

Contact us for a detailed cost estimate

ADD ELEVATORS TO YOUR BUILDING

Explore our wide range of elevator solutions tailored to a variety of building requirements.

img_Solutions for new buildings_aava door people flow

Add automatic doors to your building

Learn more about KONE Maintenance services

Find out more about KONE maintenance solutions

Learn more about KONE People Flow Intelligence solutions

Escalator and autowalk solutions

Product name	Description (+type)	Segment	Maximum rise	Speed	Inclination	Duty cycle	Environment
TravelMaster 110	escalator	Commercial, retail, hotel, office	13 m	0.4, 0.5 m/s	30°, 35°	12-16 hours/day	Indoor, outdoor, semi-outdoor
TravelMaster 115	Inclined autowalk	Commercial, retail, hotel, office	7 m	0.5 m/s	10°, 12°	12-16 hours/day	Indoor, semi-outdoor
TransitMaster 120	escalator	Infrastructure	15 m	0.4, 0.5, 0.65, 0.75 m/s	27.3°, 30°, 35°	20-24 hours/day	Indoor, semi-outdoor, outdoor
TransitMaster 140	escalator	Infrastructure	18 m	0.4, 0.5, 0.65, 0.75 m/s	27.3°, 30°	20-24 hours/day	Indoor, outdoor
TransitMaster 165	horizontal autowalk	Infrastructure	15-60 m	0.4, 0.5, 0.65, 0.75 m/s	0-6°	20-24 hours/day	Indoor, semi-outdoor
